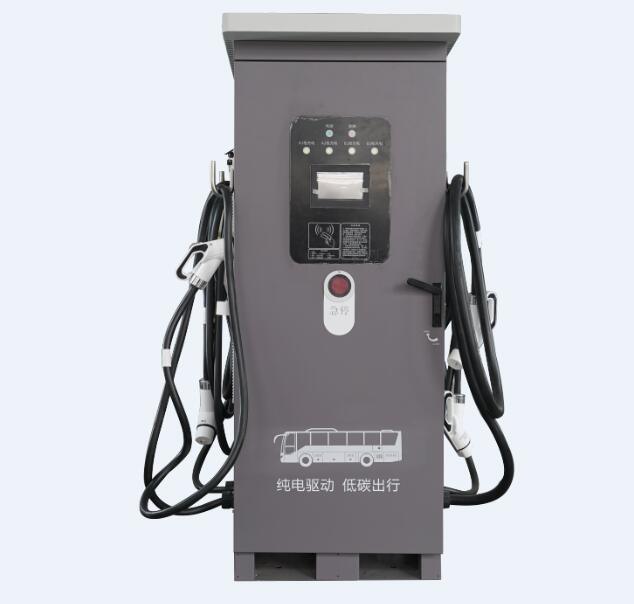

The HK series DC charging pile is the fast charging equipment which is designed and developed by Wuhan Hiconics Intelligent Electric Co., Ltd. for pure EV vehicles. Outdoor floor-mounting method adopted and with waterproof, dustproof and anti-corrosion functions, the charging pile could achieve a protection grade of IP54 and its design could meet environment protection demand. With modular design concept adopted, it has easily achieved convenient installation and commissioning and simple maintenance, etc. This kind of charging pile could be applied in large-scale parking lots, residential areas, shopping malls, hospitals, transfer stations, airports, docks, parks and scenic spots, etc.- Communication protocol meets OCPP 1.6J, which has successfully connected with many European operators due to its good compatibility.
1. Smart Communication Protocol
1. Smart Communication Protocol
- The back office system is equipped with remote upgrading, message duplicating, fault diagnosis, intelligent charging and other functions.
2. Multiple Charging Mode
Totally four charging modes of automatic charging, reservation charging, ration charging and SOC charging could be selected according to actual situation. Start methods of plug and charge, by IC card, by APP and by pressing start button could also be set freely aims to meet different requests of various customers.
3. Easy-to-control HMI Interface
Chinese, English, French and Spanish version HMI interface adopted, various languages could be selected. Computer back office system, Mobile apps and HMI interface could be selected to monitor the charging state and related parameters could be supplied for effective judgment.
4. Perfect Security Protection
- Protect Functions: overvoltage, over current, input/output default phase, residual current protection, inverse time limit when motor overload, etc
|Input Feature||AC input voltage||323~437 VAC||System Input Voltage|
|AC Input Frequency Range||45~65Hz|
|Power Factor||≥0.99||50% or higher load|
|AC Input Mode||Three-phase Five-ware system||3P+N+PE|
|Output Feature||Output Voltage Regulating Range||200~750VDC||Could achieve continuous regulating by monitoring means|
|Output Current Range||1~300A|
|Stable Voltage Precision||≤±0.5%||In Full Output Range|
|Stable Current Precision||≤0.5%|
|Current Error||≤±1% Output DC Current≥30A|
≤±0.3A Output DC Current<30A
|Average Flow Unbalance Degree||≤±5%|
|Average Efficiency||≥95%||50% or higher load|
|Input Current Harmonic Wave||≤5%|
|Power Frequency Withstand Voltage||2500V AC-3500V DC|
|Insulation Resistance||≥20MΩ||Test Voltage 1000V DC|

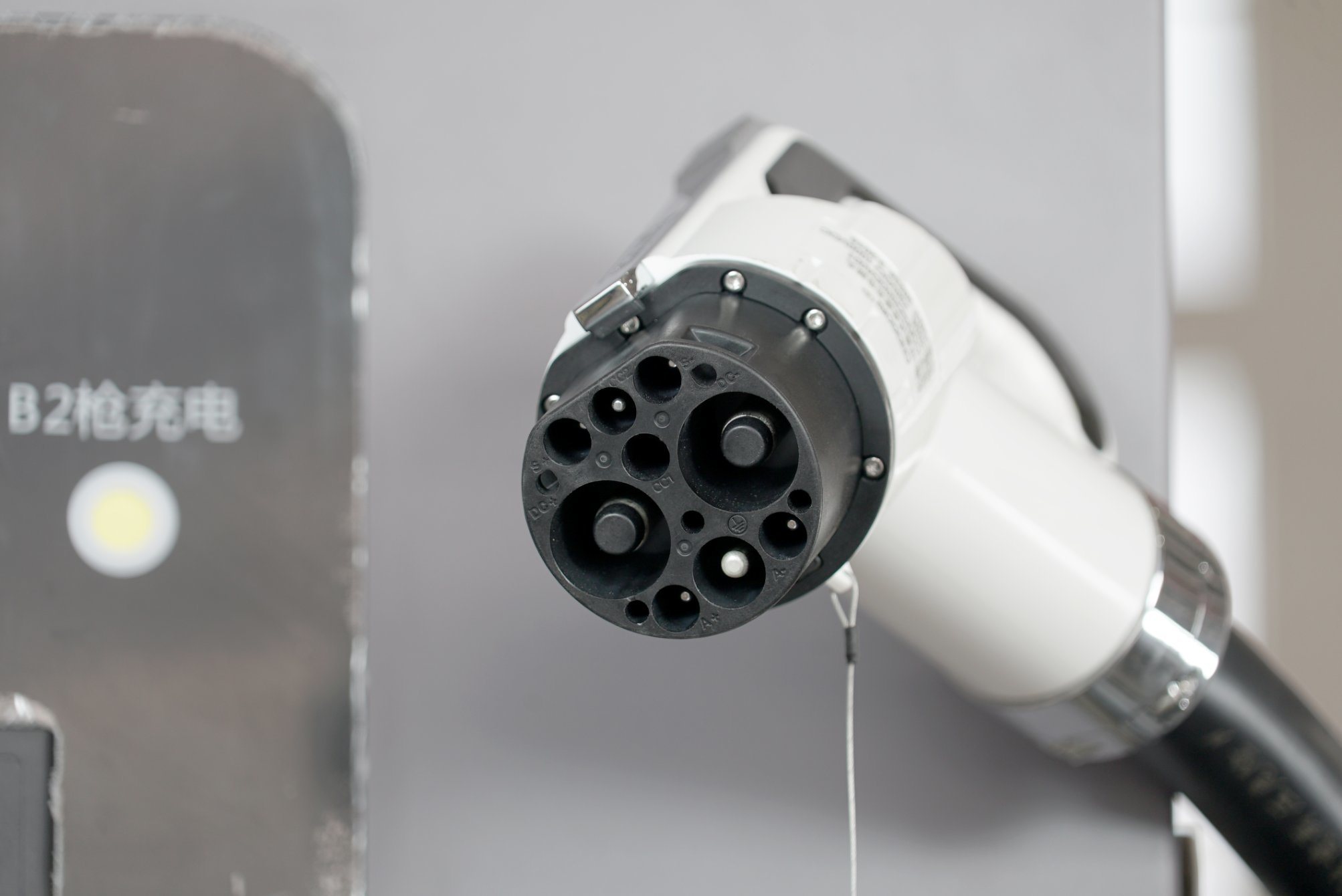

|Connector Cable Length||Standard Length is 5M|
|Environmental Protection||Meet 2011/65/EU|
Hiconics Intelligent has built national advanced automatic assembly production line with rhythm set automatically. Operation documents are put on display screen. Debugging and aging process are operated with automation equipment. Data self-collection, self-diagnosis and self-uploading could be achieved also. One charging pile could be finished within 35 minutes and daily production capacity reaches 13 sets for each production line.
Hiconics charging piles have been widely applied in more than 200 cities in China. The specially developed European Standard Charging Pile has passed strict test procedure of TUV SUD and been awarded with CE and Dakks certificates. Hiconics products have been exported to more than 10 countries and regions such as England, France, Bulgaria, Australia and Singapore, etc.
